Docker Engine failed to start - Fix

Issue

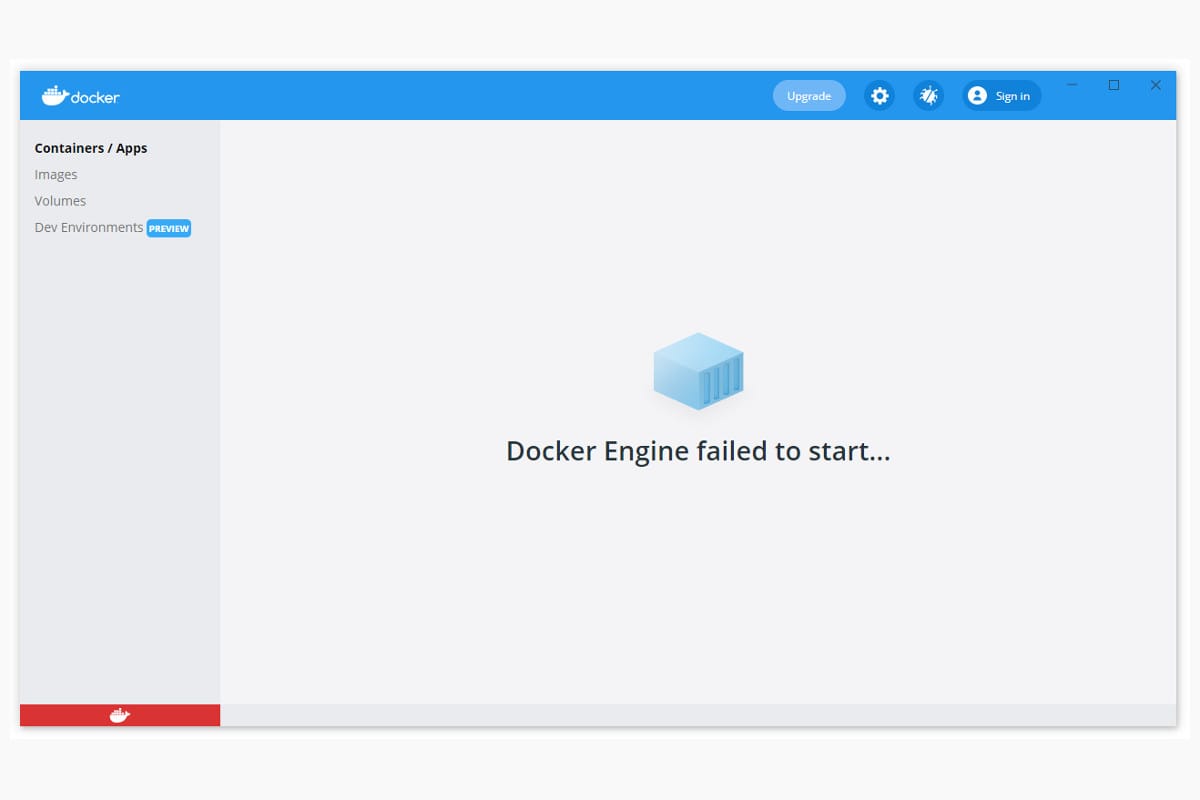

Docker Desktop will not start after Install or an upgrade with an error Docker engine failed to start.

Docker Desktop version: 3.5.1 (66501)
Windows Version: Windows 10 20H2

Opening Docker Desktop will start with this state
docker_desktop_not_starting_1

After sometime it will get into this state
docker_desktop_not_starting_5

Error Details

The possible error screens and messages. Typically it comes as a pop-up when the Docker fails.
docker_desktop_not_starting_4

docker_desktop_not_starting_3

Docker.ApiServices.StateMachines.InvalidTransitionException:
Cannot stop from an unstable state at Docker.ApiServices.StateMachines.UnstableState.Docker.ApiServices.StateMachines.IInternalEngineState.BeginStopAsync() in C:\workspaces\PR-16070\src\github.com\docker\pinata\win\src\Docker.ApiServices\StateMachines\UnstableState.cs:line 36
at Docker.ApiServices.StateMachines.EngineStateMachine.d__15.MoveNext() in C:\workspaces\PR-16070\src\github.com\docker\pinata\win\src\Docker.ApiServices\StateMachines\EngineStateMachine.cs:line 78
--- End of stack trace from previous location where exception was thrown ---
at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw()
at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task)
at Docker.Engines.Engines.d__26.MoveNext() in C:\workspaces\PR-16070\src\github.com\docker\pinata\win\src\Docker.Desktop\Engines\Engines.cs:line 264

docker_desktop_not_starting_2

See the end of this message for details on invoking
just-in-time (JIT) debugging instead of this dialog box.

************** Exception Text **************
System.ComponentModel.Win32Exception (0x80004005): The system cannot find the file specified
at System.Diagnostics.Process.StartWithCreateProcess(ProcessStartInfo startInfo)
at Docker.Core.Cmd.Run(String filename, String arguments) in C:\workspaces\PR-16070\src\github.com\docker\pinata\win\src\Docker.Core\Cmd.cs:line 36
at Docker.Backend.Processes.WindowsDockerDaemon.TryToStartService(Settings settings, String args, Dictionary2 env) in C:\workspaces\PR-16070\src\github.com\docker\pinata\win\src\Docker.Backend\Processes\WindowsDockerDaemon.cs:line 200 at System.Web.Http.Controllers.ReflectedHttpActionDescriptor.ActionExecutor.<>c__DisplayClass6_1.<GetExecutor>b__0(Object instance, Object[] methodParameters) at System.Web.Http.Controllers.ReflectedHttpActionDescriptor.ExecuteAsync(HttpControllerContext controllerContext, IDictionary2 arguments, CancellationToken cancellationToken)
--- End of stack trace from previous location where exception was thrown ---
at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw()
at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task)
at System.Web.Http.Controllers.ApiControllerActionInvoker.d__1.MoveNext()

Analysis

Tried following the steps to fix the issue

  • Restart Docker Desktop that helps most of the time
  • Windows reboot, welcome to the world of Microsoft
  • Next uninstall, Reboot and Re-Install Docker Desktop (This cleared all the image cache)

None of the steps helped solving the issue. I started investigating the logs and the two windows services responsible for the docker to function properly. This could be verified by executing services.msc from windows run prompt.

docker_desktop_not_starting_services
I noticed the Docker Engine services missing and I picked up the service details from a working machine. I have listed for reference.

  • "C:\Program Files\Docker\Docker\com.docker.service"
  • "C:\P/r/ogram Files\Docker\Docker\resources\dockerd.exe" --run-service --service-name docker -G docker-users --config-file C:\ProgramData\DockerDesktop\tmp-d4w\daemon.json

Opened a powershell window and tried to execute the second service mentioned above and it threw an error the panic.log file access is denied.
docker_desktop_not_starting_powershell

I opened the log file and noticed similar access denied error.
docker_desktop_not_starting_panicerror

Solution

Method 1

Open the following path in run prompt %ProgramData%/Docker and I renamed the panic.log file name to panic_old.log and tried opening the Docker desktop that will fix the issue.

Method 2

Do method one and try to execute the command in powershell and then open the Docker Desktop.
"C:\Program Files\Docker\Docker\resources\dockerd.exe" --run-service --service-name docker -G docker-users --config-file C:\ProgramData\DockerDesktop\tmp-d4w\daemon.json

Method 3

This issue is specific to version 3.6 where they fixed a vulnerability.
Remove the read only flag for the panic.log file in the following location %ProgramData%/Docker.
Ref:
https://nvd.nist.gov/vuln/detail/CVE-2021-37841
docker_engine_not_starting_permission

The issue might reappear after a system reboot. Delete the panic.log file and startup again. I will post if I find a permanant solution.

Update 9/7/2021:

Relase 4.0 has fixed the access issue.

Fixed a bug when switching from Linux to Windows containers due to access rights on panic.log
https://docs.docker.com/desktop/windows/release-notes/
